Get the paper off the position.

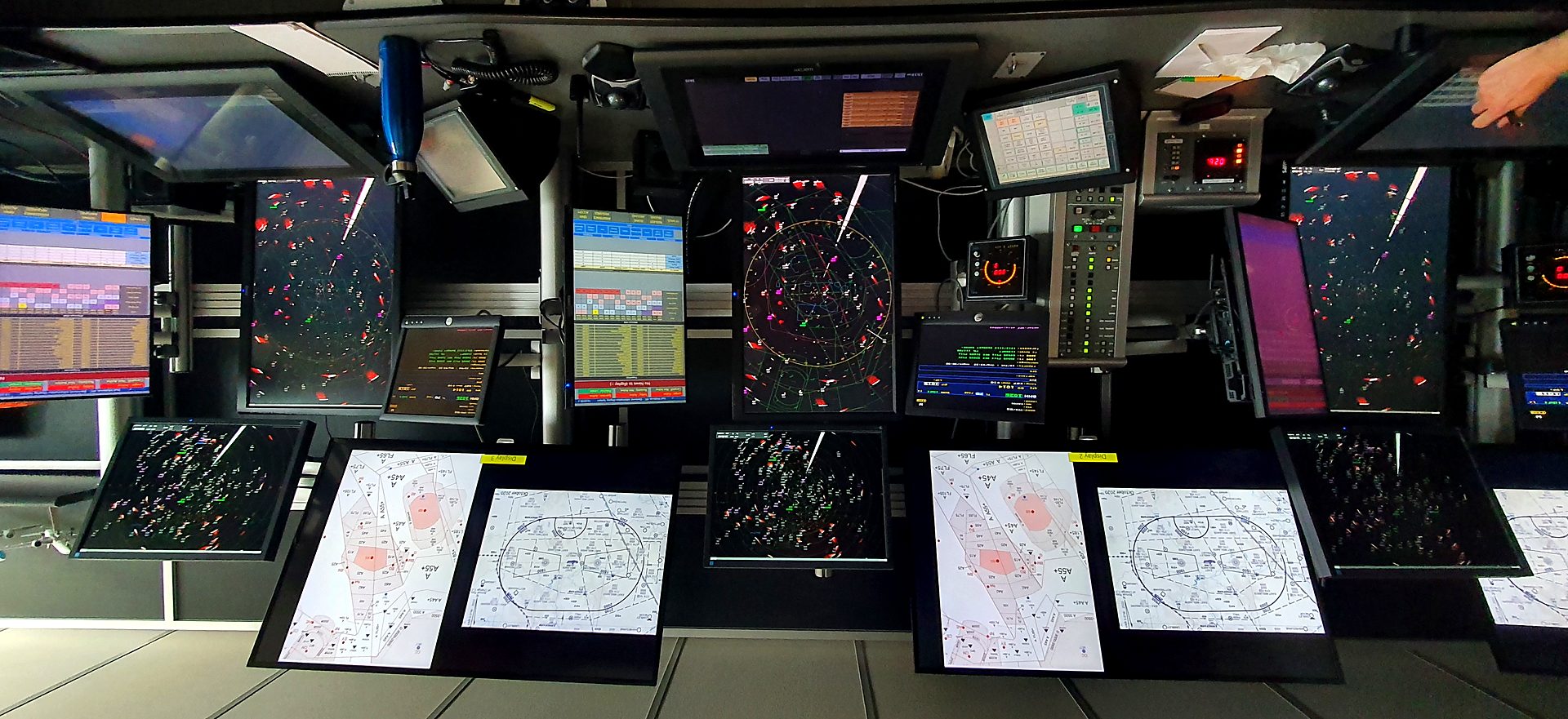

MEIDS replaces the folders, laminates and loose temporary instructions at every controller working position with a single indexed, always-current touchscreen — then keeps going, monitoring hours in position, currency, self-briefing and who is in the building.
Every unit knows this list
MEIDS started life in 2017 after an internal review at an operational ATC unit found the same four issues most units will recognise.
Too much paper, badly organised
Large volumes of paper at every position — untidy, hard to police and impossible to keep tidy through a busy shift.
Temporary instructions going stale
TIs that needed re-issuing or updating simply weren't reaching the operational positions in time.
Nothing indexed
Information couldn't be found quickly at the moment it was actually needed. Which is the only moment that matters.
No guarantee of currency
No way to be certain a controller was reading the latest edition rather than a superseded instruction.

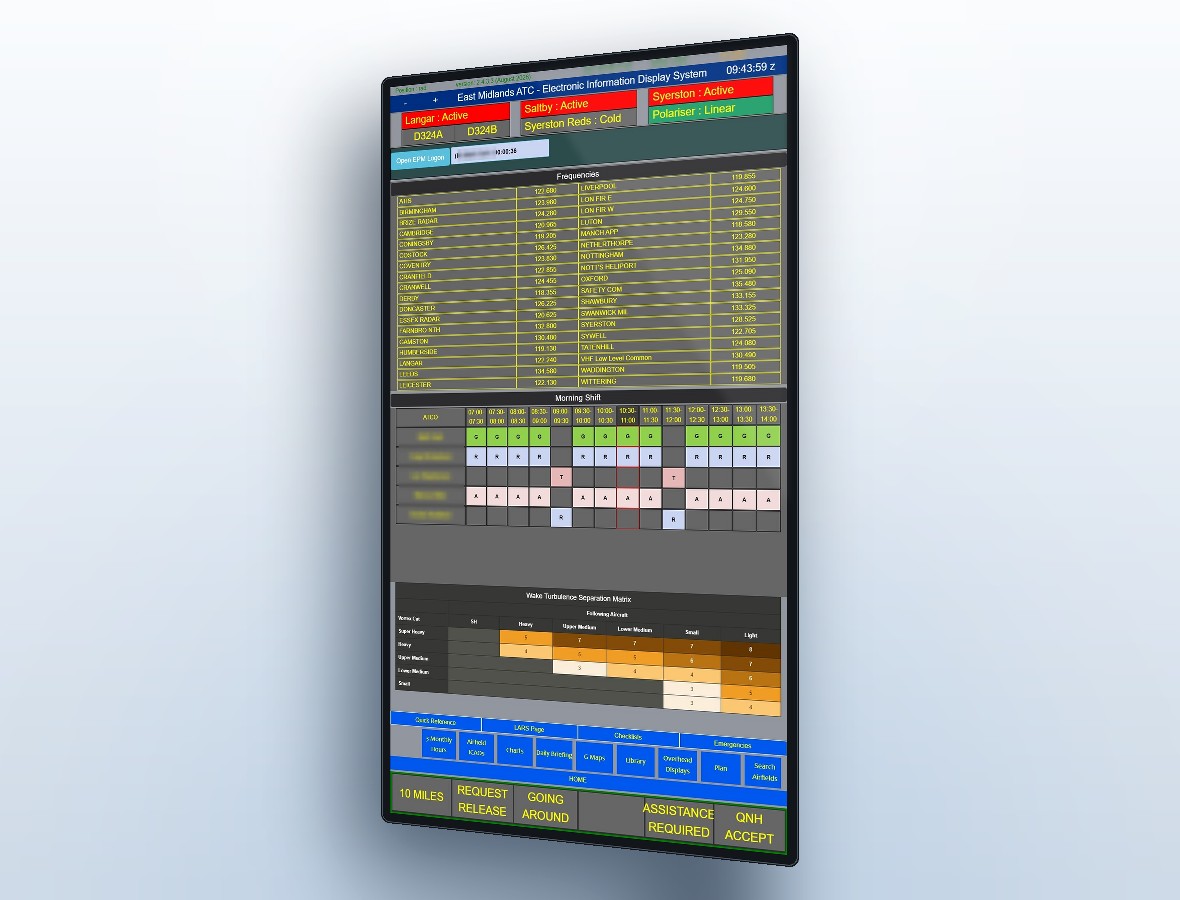

One screen. Everything on it.

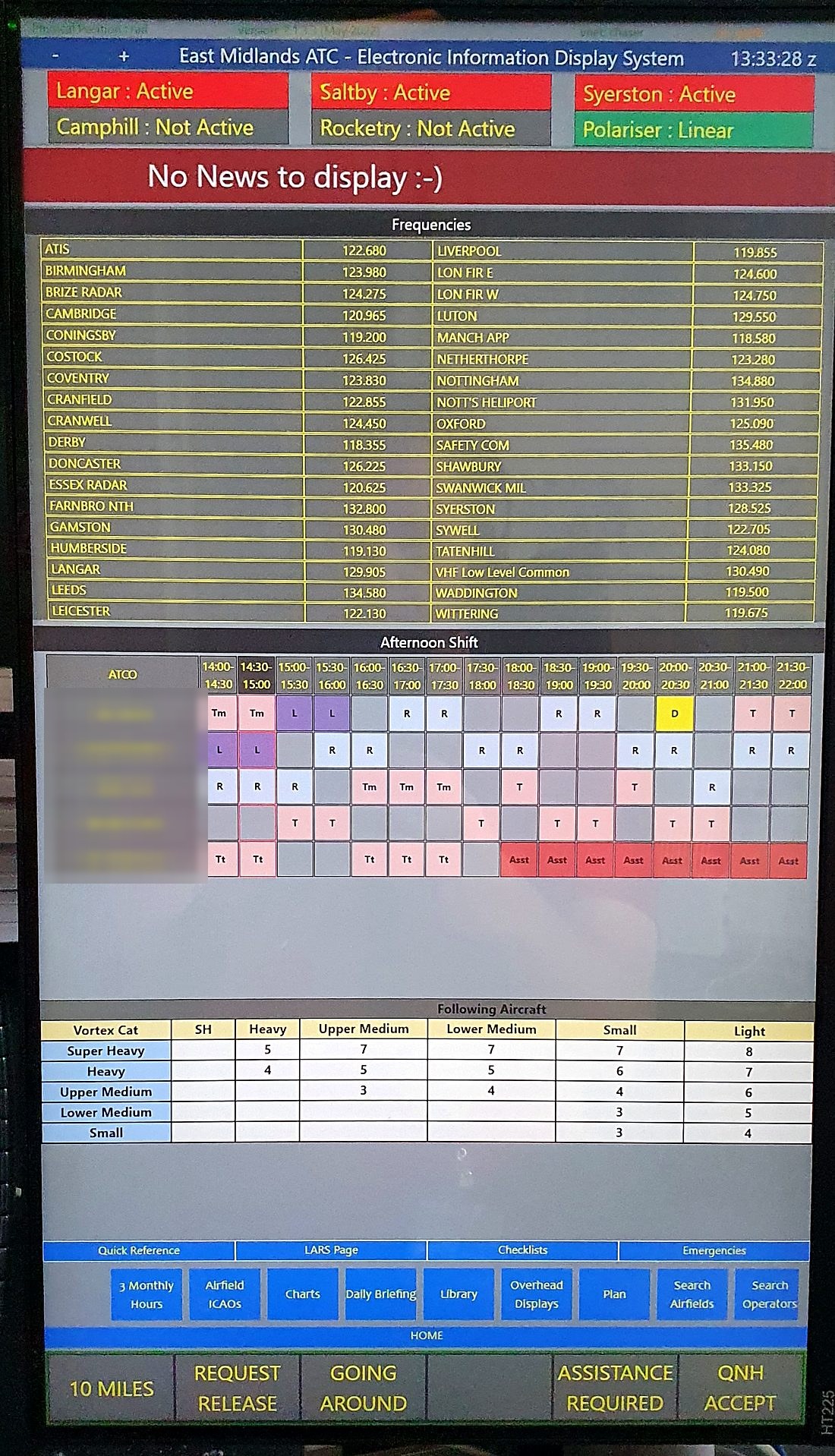

An indexed electronic library at every position, with a quick-reference area for the lighter documents and direct navigation-bar links to whatever your controllers reach for most often.
- Squawk, frequency and wake turbulence tables on screen
- ATCO seating plans displayed live
- NOTAMs and ICAO data via API integration
- Worldwide aerodrome weather through the FAA met system
- Portrait for radar positions, landscape for the tower
Currency you can actually evidence

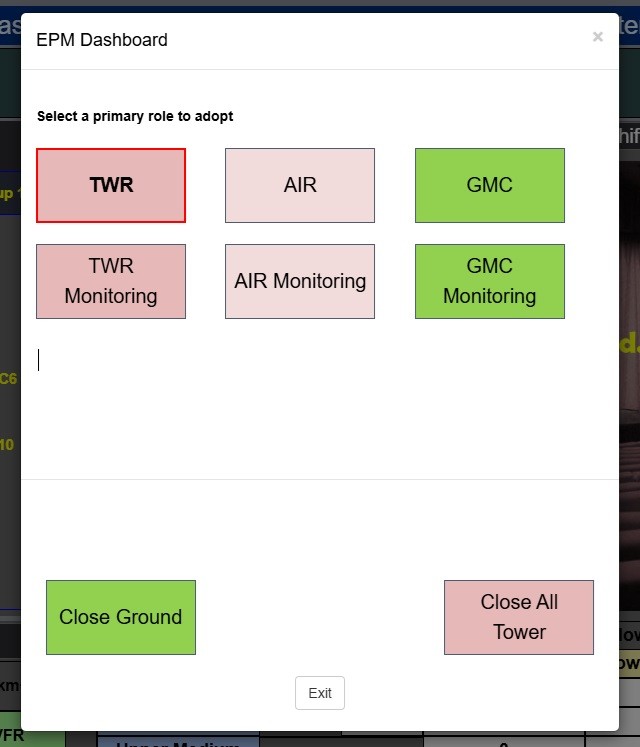

Controllers tap in with an RFID card and select the role they're adopting. MEIDS records the real hours in position — not the roster's best guess — and stores them against the individual.
- Accurate currency data for every position and rating
- Warns when time in a seat approaches your published limits
- Flags controllers who forgot to swipe in
- Checks actual staffing against the seating plan
- Detailed hours reports for competency schemes and audits

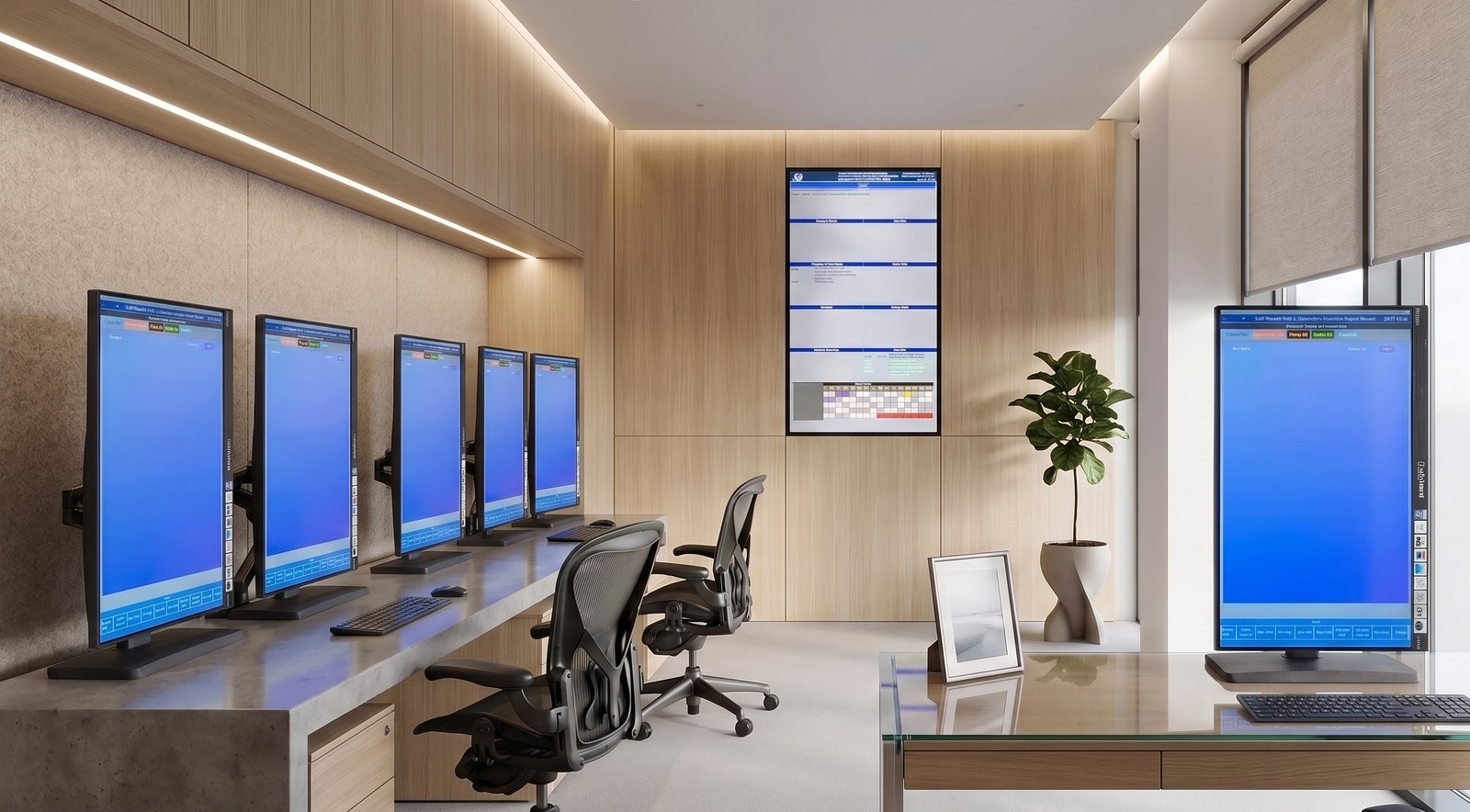

Read & sign, without the folder
RFID logon takes each controller straight to their own briefing area: unread documents first, a timestamped record of everything already read, and the option to email a copy to themselves.
- Auto-updating 4K briefing board with live METAR and TAF
- Diary entries appear on the day and clear themselves when expired
- Documents uploaded from any MEIDS admin terminal
- Audit trail of who has read what, and when
Mix and match to fit your unit
Every module below can be included or left out. Start with the information display and add capability as you go — that is exactly how MEIDS grew in the first place.
Information Display System
Indexed document library, quick reference, maps and operational tables at every position.

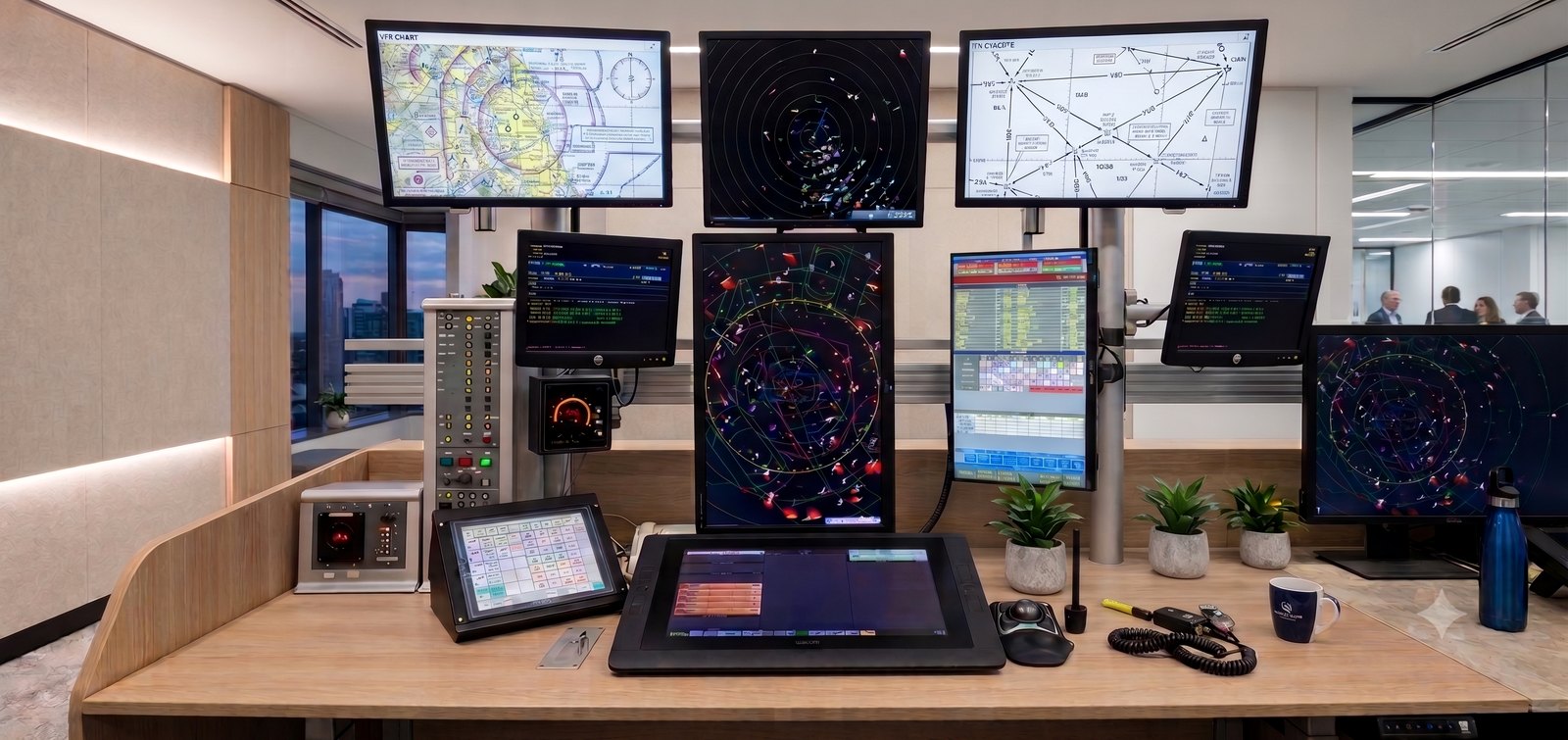

Radar Overhead Displays
50" map displays driven from any operational position, served from one central repository.

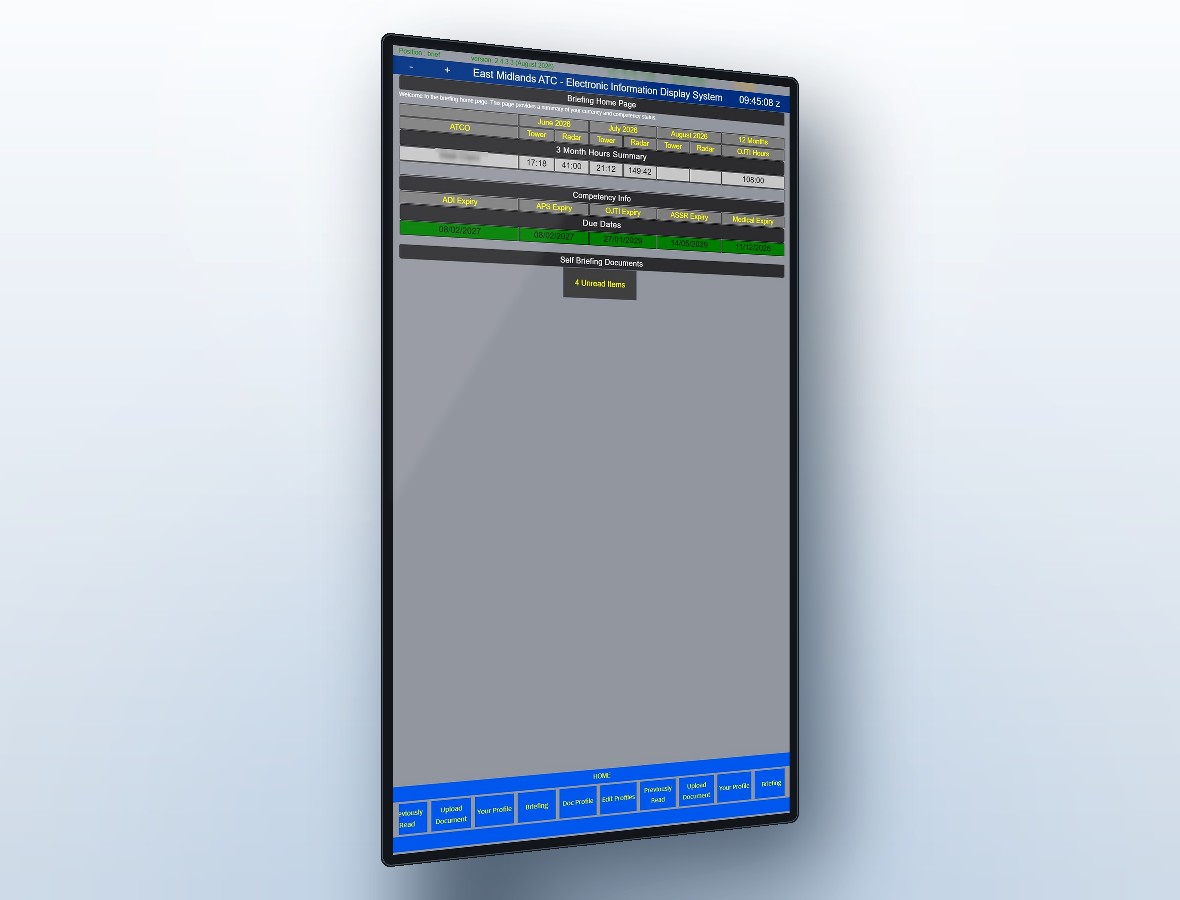

Competency & Currency
RFID tap-in position monitoring with detailed hours reporting for every controller.
ATCO Self-briefing
Personal briefing areas, unread lists and a timestamped read record per individual.

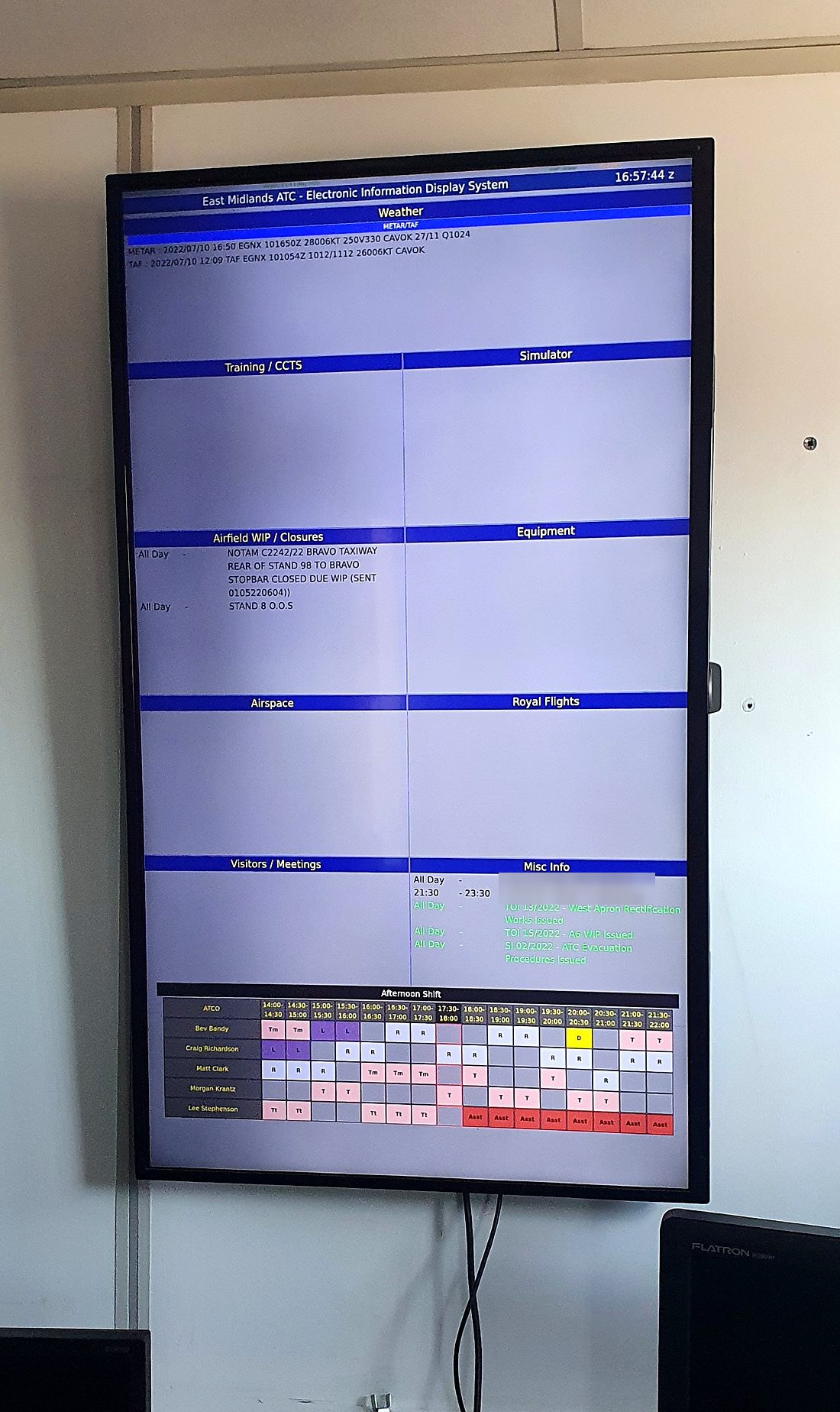

ATC Briefing Board
4K board with live METAR/TAF and a diary that populates and expires itself.
Building Access Monitor
Tap in and out, a live “Who’s In” page, and roll-call data pushed to an evacuation laptop.
Airspace Activity Display
Activity buttons synced in real time across every position, with fully customisable labels.
Assistance Required Alarm
One button raises a banner on all positions and can drive external bells or door relays.
Airfield Restrictions Helper
Type-specific manoeuvring restrictions surfaced in seconds instead of hunted through.
Designed around the position, not the other way round
MEIDS was built inside a working ATC unit during an operations room redesign, where old equipment had to be replicated in new desks and audit findings had to be closed at the same time. That constraint shaped everything.

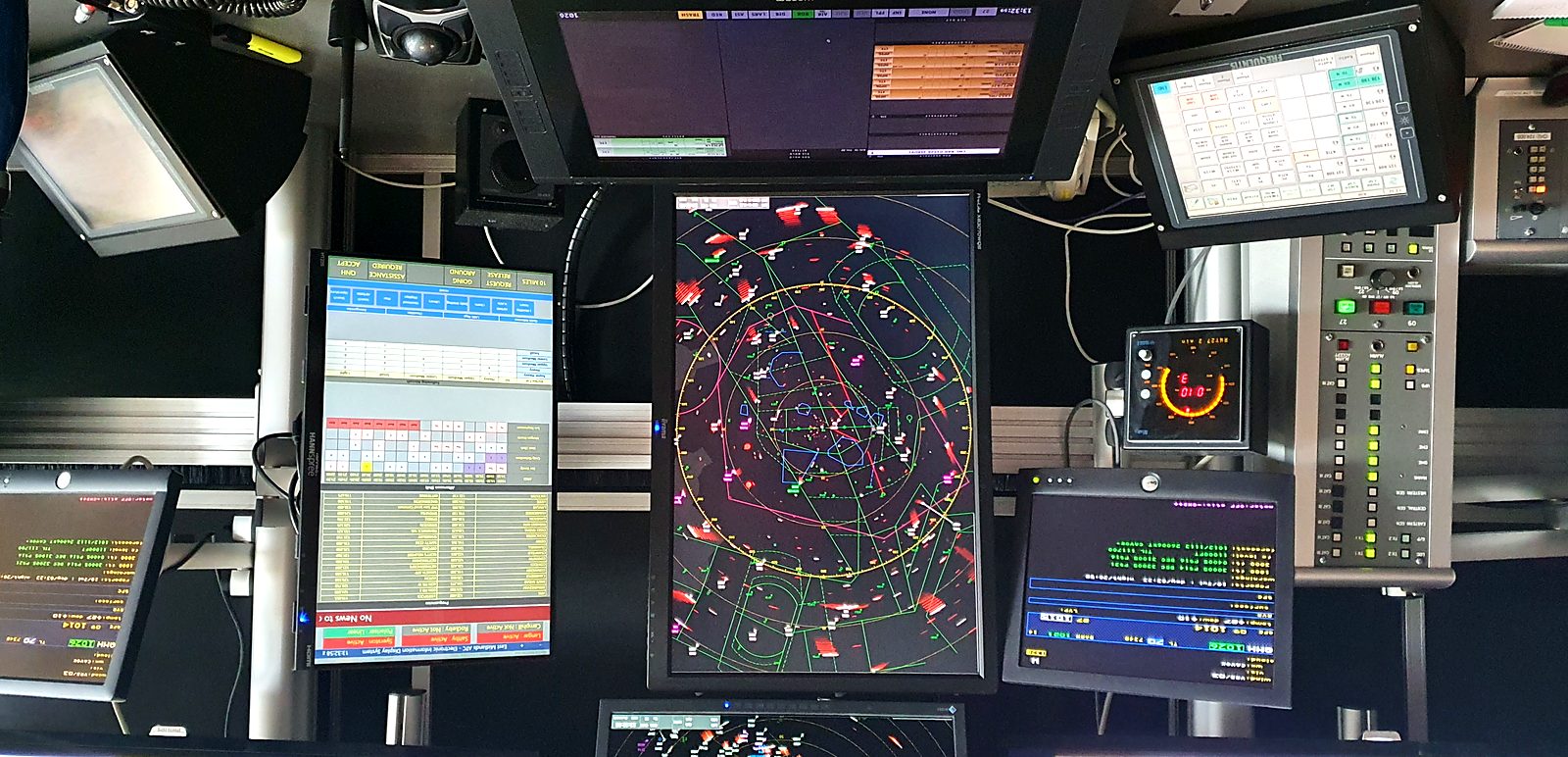

- Portrait or landscape to suit each position
- 23" touchscreens on compact PCs — no bulky hardware in the desk
- Chrome in kiosk mode: no desktop, no distraction
- RFID reader at every position
See MEIDS running
We'll walk you through the modules, show you the system in operational use and talk about what a deployment at your unit would actually involve.
